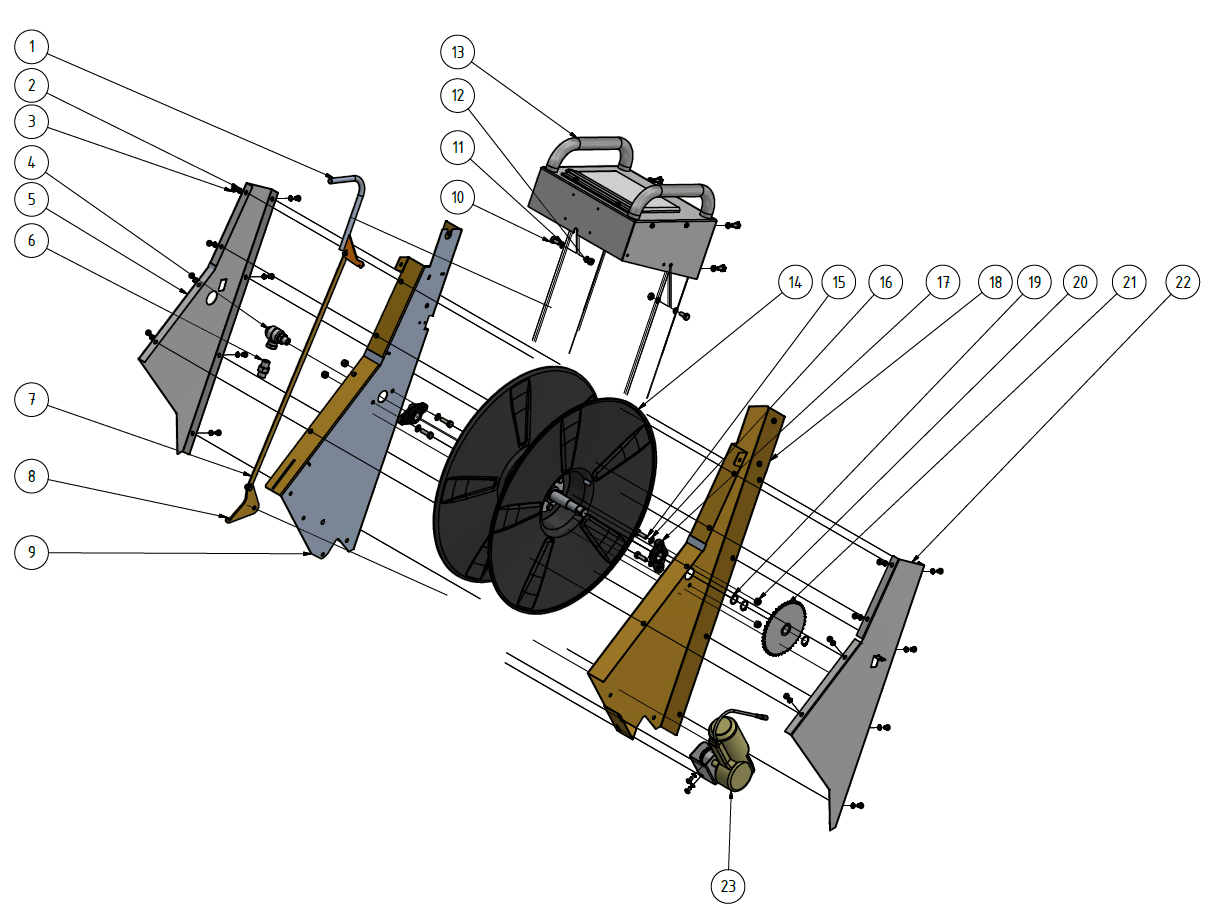

| Items Number | Parts Number | Description | Quantity |
|---|---|---|---|
| 1 | 1109206 | Clutch handle | 1 |
| 2 | 941045 | Spring washer M6 | 18 |
| 3 | 941007 | Screw M6 x 10 | 18 |
| 4 | 961003V | Swivel | 1 |
| 5 | 1109217 | Right lid | 1 |
| 6 | 961059-1-oa110 ANVÄNDS INTE? | Adapter 3/8 | 1 |
| 7 | 159207 | Arm | 1 |
| 8 | 1109212 | Lever | 1 |
| 9 | 1109209 | Right box | 1 |
| 10 | 941015-1-oa97 kolla längd | Screw M8 x 16 | 6 |
| 11 | 941088 | Spring washer M8 | 8 |
| 12 | 941017 | Nut M8 | 2 |
| 13 | 1109516 | Box assembly | 1 |
| 14 | 1109513 | Hose reel assembly | 1 |
| 15 | 941018 | Screw M8 x 25 | 1 |
| 16 | 941016 | Washer M8 | 1 |
| 17 | 901036 | Flange bearing EFOM 20 | 1 |
| 18 | 1109208 | Left box | 1 |
| 19 | 941040 | Circlips 20mm | 3 |
| 20 | 941020 | Nut M8, nyloc | 1 |
| 21 | 1109211 | Sprocket | 1 |
| 22 | 1109213 | Left lid | 1 |
| 23 | 1109515 LÄGGA BARA MOTOR? | Drive unit | 1 |
