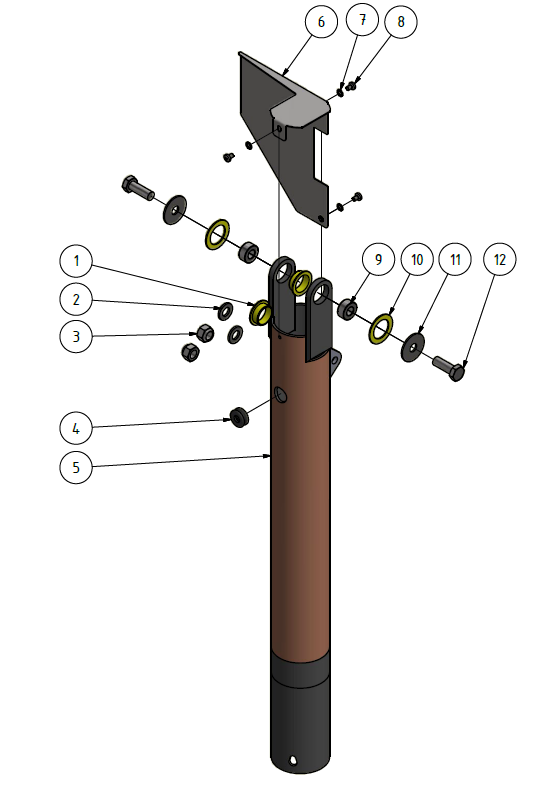

| Item Number | Document Number | Description | Quantity |
|---|---|---|---|
| 1 | 901038 | Flange-bearing QFM-2528-21 | 2 |
| 2 | 941030 | Washer 12mm | 2 |
| 3 | 941071 | Nut M12 Nylock | 2 |
| 4 | 901102 | Lead-trough | 1 |
| 5 | 1101012 | Tower | 1 |
| 6 | 109701 | Bend Plate | 1 |
| 7 | 941087 | Toothed Washer 5mm | 3 |
| 8 | 941035 | Screw M5 x 8 | 3 |
| 9 | 701006 | Ring | 2 |
| 10 | 901039 | Washer QTM-2842-015 | 2 |
| 11 | 201004 | Washer 12 x 30 | 2 |
| 12 | 941037 | Screw M12 x 35 | 2 |
